Roofing & Wall Panels
Built to last, our panels shield and elevate your spaces.
Roofing and wall panels are essential components that offer both protection and style to any structure. Engineered to withstand harsh weather conditions, these panels are designed for maximum durability, ensuring long-term resilience and low maintenance. Whether used for commercial, or industrial buildings, roofing and wall panels not only shield interiors from external elements but also enhance the building’s aesthetic appeal.
Jinendra Infinity Techno fab offers a wide range of Pre-Engineered Building (PEB) frame systems designed to meet diverse industrial, commercial, warehouse, and institutional requirements. Each frame is engineered for strength, stability, and design flexibility, ensuring reliable performance even in demanding operating conditions.
Our PEB frames are manufactured with precision to create large clear-span spaces, reduce structural weight, and support faster project execution. Whether the requirement is for a factory, logistics facility, showroom, or commercial structure, our framing solutions are customized to deliver efficient space utilization without compromising structural integrity.
By combining advanced engineering, quality-controlled fabrication, and project-specific design, we provide PEB frame solutions that help clients achieve durable, cost-effective, and future-ready buildings.

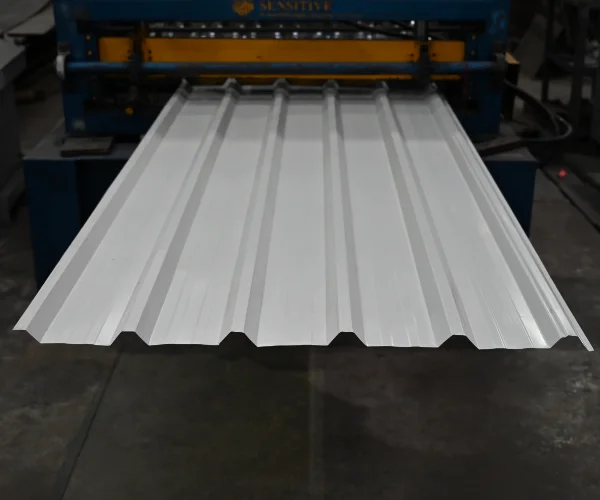

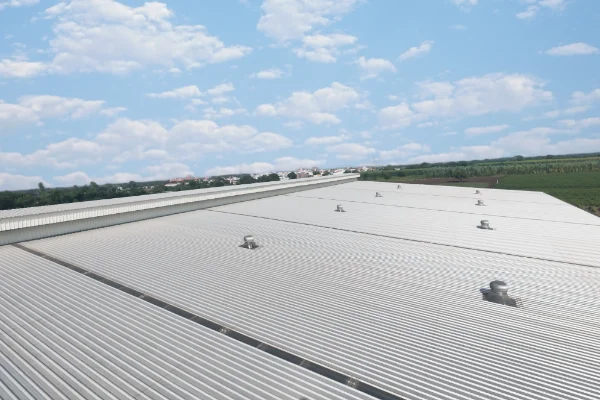

Long-lasting roofs with screw-down sheeting technology.
- Material : Galvanized steel, Aluminum, or Zinc-coated steel
- Sheet Thickness : 0.35mm to 0.8mm (varies by application)
- Width : 1075mm Effective Width, 1000mm Cover Width
- Length : Customizable based on project requirements
- Profile Type : Trapezoidal or ribbed
- Fasteners : Self-drilling screws, usually with neoprene washers for leak prevention
- Coating : Polyester, PVDF, or epoxy coating
- Pitch : Suitable for low to high-pitch roofs
- Corrosion Resistance : Excellent resistance due to protective coating
- Load Capacity : Can withstand rain, wind, and structural loads (varies by gauge and profile)
- Maintenance : Low-maintenance with regular inspections
01. Durability
Designed to withstand harsh weather conditions, including wind, rain, and snow.
02. Cost-Effective
Offers an affordable roofing solution without compromising on quality or protection.
03. Weather Resistance
Provides excellent protection from the elements, with corrosion-resistant coatings for enhanced durability.
04. Variety of Materials
Available in galvanized steel, aluminum, and zinc-coated steel for various project requirements.
05 Enhanced Leak Prevention
Fasteners with neoprene washers prevent leaks, ensuring a secure, waterproof roofing solution.
06. High Load Capacity
Can handle significant weight and structural loads, making it suitable for large commercial or industrial buildings.

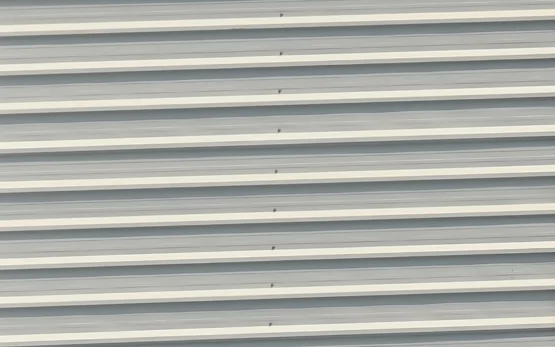

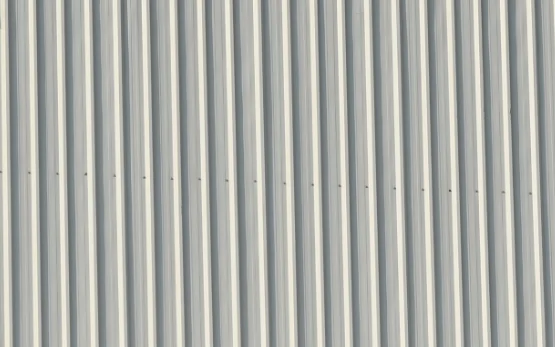

Elevate your walls with stylish, durable cladding.
Seamless strength and sleek design for lasting protection.

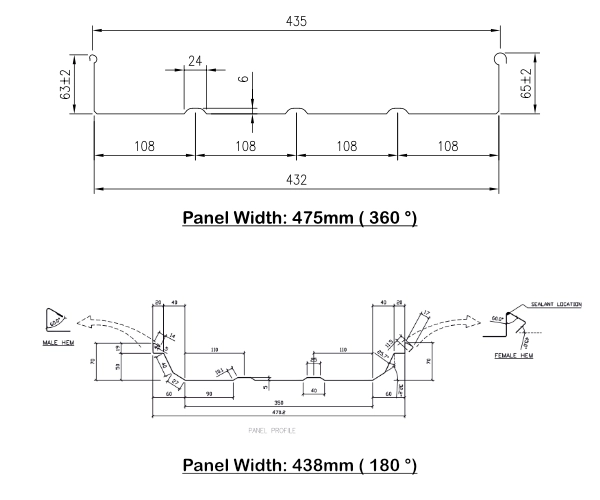

Standing seam roof sheeting is a premium roofing option known for its sleek, uninterrupted lines and outstanding durability. This roofing system features raised seams that lock tightly together, creating a continuous surface resistant to leaks, rust, and harsh weather conditions. Its design not only offers a modern aesthetic but also minimizes maintenance requirements, making it an ideal choice for commercial. With its blend of style and resilience, standing seam roof sheeting is engineered for both performance and beauty.
- Material Options : Galvanized steel, aluminum for durability and corrosion resistance
- Panel Width : Typically 12 to 24 inches, based on design and structural needs
- Crest Height : 57mm
- Weather Resistance : High wind, rain, and leak resistance
- Colors : Custom, fade-resistant options
- Installation : Skilled installation with special tools
01. Seamless Design
Raised seams lock panels securely, providing a sleek, modern appearance with minimal visible fasteners.
02. Weather Resistance
Excellent protection against leaks, rust, high winds, and heavy rainfall, making it highly durable in extreme climates.
03. Thermal Expansion
Concealed clips and fasteners allow for thermal movement, reducing stress and potential warping.
04. Low Maintenance
Durable finish and corrosion resistance reduce the need for frequent maintenance.
05. Energy Efficiency
Metal reflects sunlight, reducing cooling costs in warmer climates.
06. Sustainability
Often made from recyclable materials, supporting eco-friendly building standards.
